Anthem Advanced Pro 29 1
-
Detail
Highlights
Engineered with a full composite frameset, this 29er has 100mm of rear suspension travel and 110mm up front. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a lightweight, stiff composite wheelset for quick, precise handling.
1Advanced Composite
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.

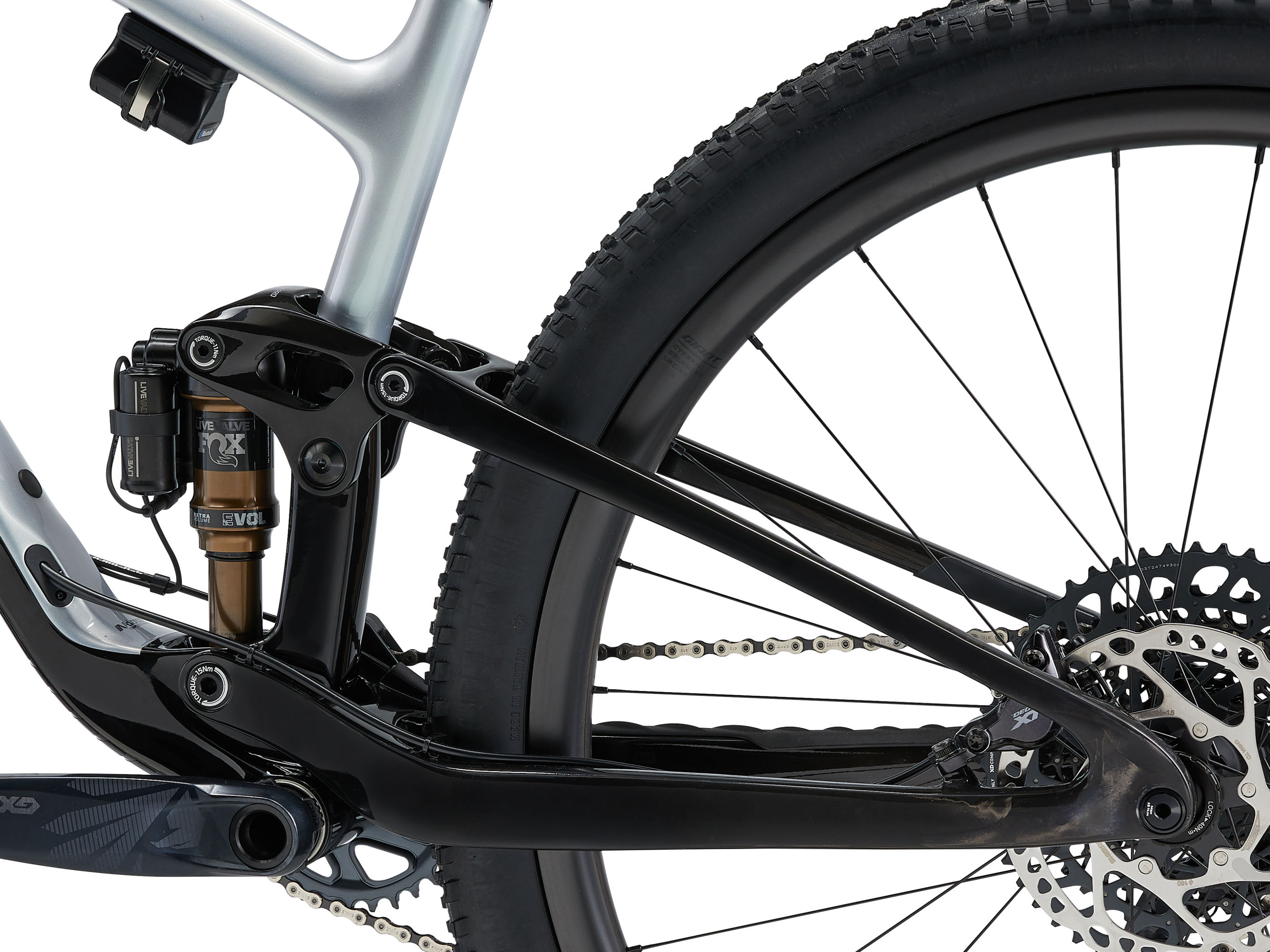

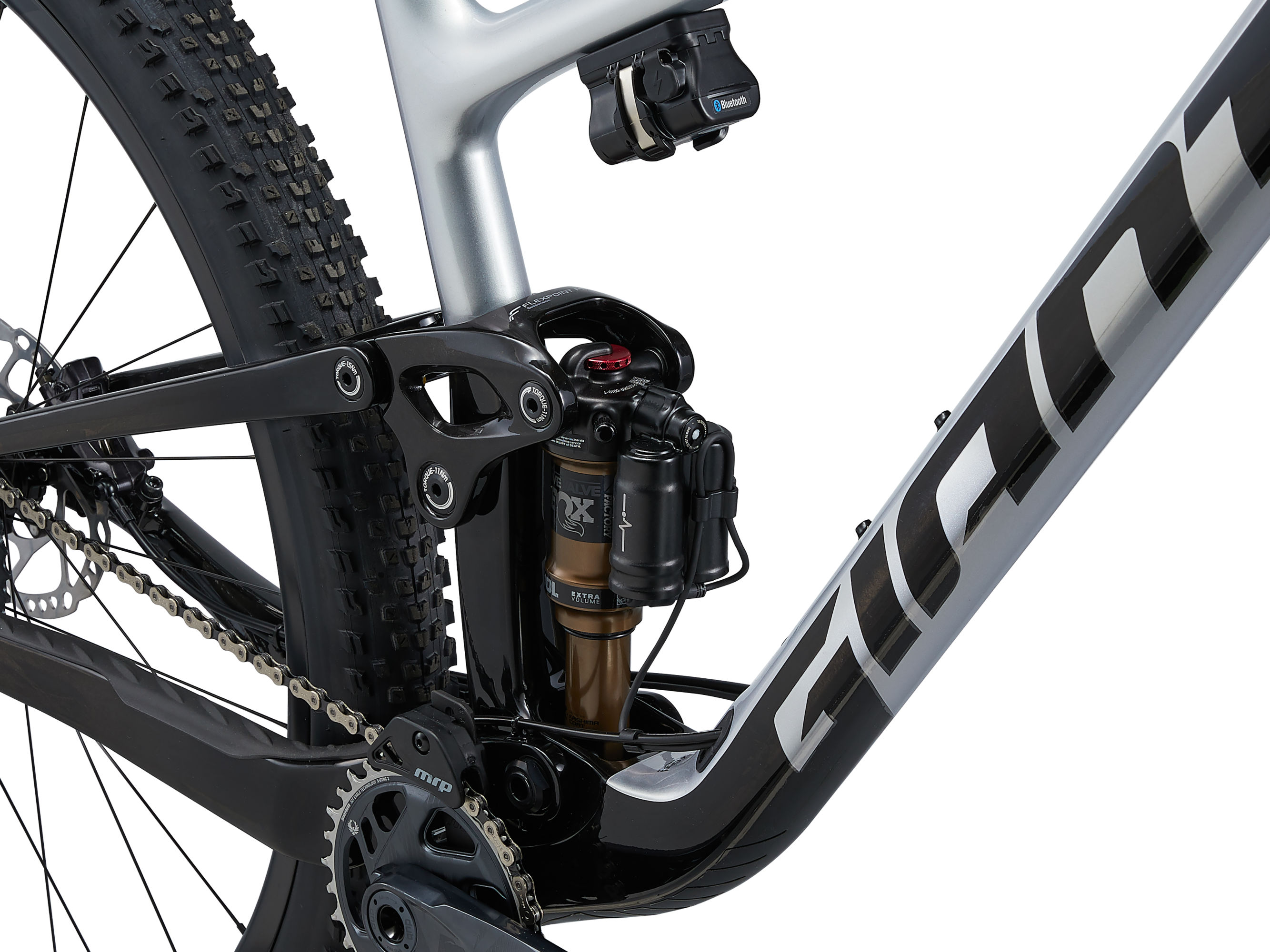

2Flexpoint Pro Suspension
Developed as superlight rear suspension for XC bikes that demand efficiency, control and responsive handling, this linkage-driven, single-pivot system delivers 100mm of rear-wheel travel. It’s engineered with a full-composite swingarm to minimize frame weight.
3XC Race Geometry
The superlight composite frame is optimized for efficiency and control with an updated 67.5-degree head tube angle, longer reach, and a 110mm suspension fork for fast, technical XC performance.
4OverDrive
Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
5Updated Cockpit
New Giant Contact SL stem and composite handlebar with a larger 35mm diameter and ample width for more control and leverage while descending, sprinting and climbing.
6Boost Technology
Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline to improve drivetrain performance.
7Advanced Forged Composite
A state-of-the-art high-pressure molding process is used to produce the composite rocker arm, making it lighter, stiffer and stronger than aluminum.
8PowerCore
A massively oversized bottom bracket/chainstay area features a fully integrated, 92mm bottom bracket design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
9Composite Wheelsystem
Lightweight, stiff and durable carbon wheels and tubeless tires deliver race-ready efficiency and precision handling.
10Integrated Cable Ports
New design for internal cable routing offers a clean look and performance for derailleur, brake and dropper post cables and housing.

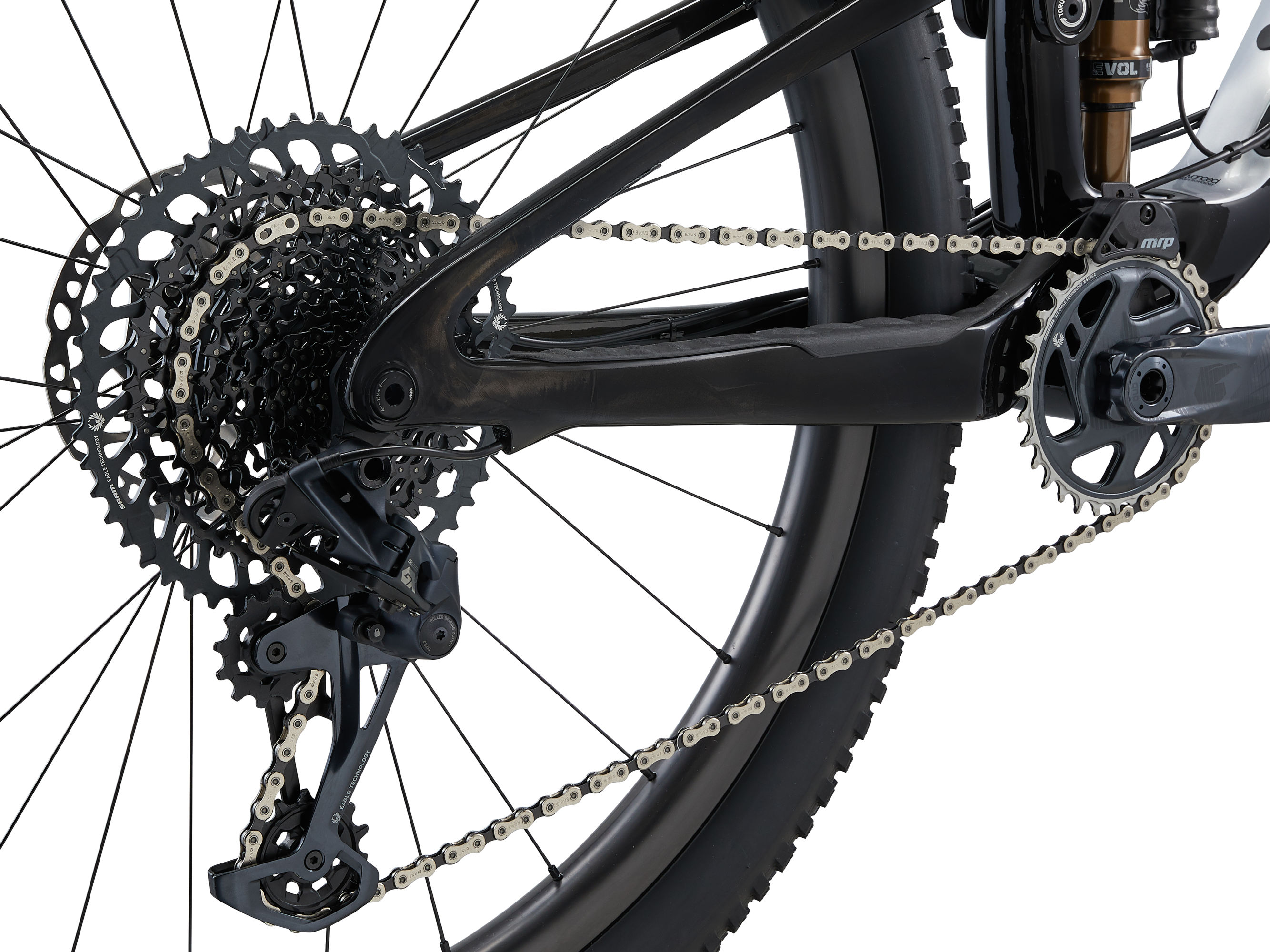

11Custom Chain Guide
All-new Giant/MRP chain guide reduces the chance of the chain falling off the chainring on rough, technical XC terrain.
Techs & Features
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.-
- S
- 163 cm
172 cm
-
- M
- 171 cm 180 cm
-
- L
- 179 cm 188 cm
-
- XL
- 187 cm 198 cm
S M L XL A Seat Tube Length (mm) 390 420 465 495 B Seat Tube Angle 75.5° 75.5° 75.5° 75.5° C Top Tube Length (mm) 572 604 626 653 D Head Tube Length (mm) 90 95 105 115 E Head Tube Angle 67.5° 67.5° 67.5° 67.5° F Fork Rake (mm) 44 44 44 44 G Trail (mm) 109 109 109 109 H Wheelbase (mm) 1127 1159 1183 1212 I Chain Stay Length (mm) 435 435 435 435 J Bottom Bracket Drop (mm) 42 42 42 42 K Stack (mm) 489 593 603 612 L Reach (mm) 420 450 470 495 M Stand Over Height (mm) 745 750 777 800 N Handlebar Width (mm) 760 760 760 760 O Stem Length (mm) 60 70 70 70 P Crank Length (mm) 170 175 175 175 Q Wheel Size 29" 29" 29" 29" -
-
